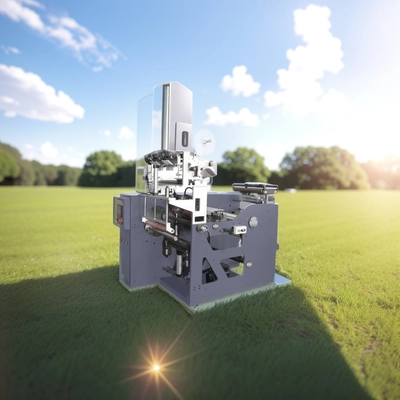

This machine has a maximum speed of 150m/min. It is controlled by a
servo motor and features functions such as slitting, auto paper
core loading (optional), auto cutting, auto labeling, and auto
rewinding. The paper core does not require glue and will not fold.
It also includes a meter counter, quantity counter, and the option
for auto unload.
Applications:
Specification:
| Machine Model | SZ-330B | SZ-450B |
| Max paper feeding | 330mm | 450mm |
| Max speed | 150m/min | 150m/min |
| Slitting precision | +-0.1mm | +-0.1mm |
| Max unwinding diameter | 700mm(customized into 1000mm) | 700mm |
| Max rewinding diameter | 180mm(customized into 254mm) | 180mm |
| Voltage | 220V 1P 50HZ/380V 3P 50HZ | 220V 1P 50HZ/380V 3P 50HZ |
| Total power | 6KW | 8KW |
| Machine weight | 1000kg
| 1500kg
|
| Machine size | 1500*1200*3000mm | 1500*1400*3100 |
Machine details:
1:slitting speed:150m/min
2:slitting precision:+-0.1mm
3:paper feeding width max:330mm
4:max unwinding diameter:700mm(customized into 1000mm)
5:max rewinding diameter:180mm(customized into 254mm)
6:machine weight:1000kg
7:machine voltage:220V/380V
8:Total power:6kw
9:machine size:1500*1200*3000mm
Unwinding part:
1:unwinding at air shaft: 3inch 1 piece
2:auto tension controller
3:auto web guide
Slitting part:
1:up knife:8 piece
2:down knife:8 piece
3:left and right hand wheel for adjustment
4:number counting photo-eyes
5:vacuum waste absorb
6:material pulling traction roller(servo)
Rewinding part:
1:auto turret rewinding system(servo)
2:rewinding air shaft(1 inch or 1.5inch at 2pieces)
3:auto inflation
4:no glue system
5:auto cutting system
6:auto labeling system
7:auto paper core feeding system(optional)
8:auto unloading(optional)
Customization:
Customized Services for Supreme Non Stop No Glue Free Glue-less 4
Four Spindle 2 Shaft Label Turret Slitting Rewinding Machinery
Brand Name: Supreme
Model Number: SZ-330B
Place of Origin: Wenzhou
Certification: CE
Minimum Order Quantity: 1
Price: negotitaon
Packaging Details: fumigation wooden box
Delivery Time: 60 working days
Payment Terms: TT
Supply Ability: 30set/mont
Adhesive Type: Sticker
Label: Paper Adhesive Sticker
Material: Paper
Application: Slitting And Rewinding
Color: White
Non Stop No Glue Free Glue-less 4 Four Spindle 2 Shaft Label Turret
Slitting Rewinding Machinery
With our customized services, you can trust in the superior quality
and high efficiency of our Supreme Non Stop No Glue Free Glue-less
4 Four Spindle 2 Shaft Label Turret Slitting Rewinding Machinery.
We understand the importance of meeting your specific needs and
requirements, and our team is dedicated to providing the best
solutions for your adhesive label production. Our fully automatic
4-shaft turret rewinding machine is designed for precision and
reliability, making it the perfect choice for your paper adhesive
sticker production. Trust in Supreme for all your customized
slitting and rewinding needs.
Support and Services:
Technical Support and Services for Non Stop No Glue Free Glue-less
4 Four Spindle 2 Shaft Label Turret Slitting Rewinding Machinery
Our Non Stop No Glue Free Glue-less 4 Four Spindle 2 Shaft Label
Turret Slitting Rewinding Machinery is designed and manufactured
with the highest quality standards to ensure efficient and reliable
performance. In addition, we are committed to providing exceptional
technical support and services to our customers to meet their
specific needs.
Technical Support
Our team of experienced technicians is available to provide
technical support and assistance for any issues or concerns you may
have with our Label Turret Slitting Rewinding Machinery Paper
Adhesive Sticker. We offer prompt response times and strive to
resolve any problems as quickly as possible.
Remote Support
We understand that time is of the essence in production processes,
which is why we offer remote support services. Our technicians can
remotely access your machinery to diagnose and troubleshoot any
issues, minimizing downtime and maximizing efficiency.
On-Site Support
If your machinery requires on-site support, our team can be
dispatched to your location to provide immediate assistance. They
are equipped with the necessary tools and expertise to quickly
resolve any technical issues.
Services
In addition to technical support, we also offer a range of services
to ensure your Label Turret Slitting Rewinding Machinery Paper
Adhesive Sticker operates at peak performance.
Installation and Training
Our team can provide on-site installation of our machinery and
comprehensive training for your operators. This will ensure that
your team is fully equipped to operate the machinery efficiently
and effectively.
Maintenance and Repair
To prolong the life of your machinery and prevent unexpected
breakdowns, we offer maintenance services to keep your Label Turret
Slitting Rewinding Machinery Paper Adhesive Sticker in optimal
condition. If any repairs are needed, our technicians can quickly
and accurately diagnose and fix the issue.
Customization and Upgrades
We understand that every production process is unique, which is why
we offer customization and upgrade services to tailor our machinery
to your specific needs. This can include adding additional features
or capabilities to improve efficiency and productivity.
With our commitment to quality and exceptional technical support
and services, you can trust our Label Turret Slitting Rewinding
Machinery Paper Adhesive Sticker to meet your labeling needs.
Contact us today for more information.
Packing and Shipping:
Packaging:
The Label turret slitting rewinding machinery paper adhesive
sticker is carefully packaged to ensure safe delivery. The machine
is first wrapped in a protective layer and then placed in a sturdy
wooden crate to prevent any damage during transportation.
The packaging is designed to withstand rough handling and extreme
weather conditions, ensuring that the machine reaches its
destination in perfect working condition.
Shipping:
The Label turret slitting rewinding machinery paper adhesive
sticker can be shipped worldwide. We work with reliable shipping
companies to ensure timely and secure delivery of the machine.
The shipping method and cost will depend on the destination and
weight of the package. Customers can choose from various shipping
options such as air, sea, or land transport.
Once the machine is shipped, we will provide the customer with a
tracking number so they can monitor the status of their delivery.
For international shipments, customers may be responsible for any
customs fees or taxes incurred during the import process.
Overall, we strive to provide efficient and hassle-free shipping
services to our customers.
FAQ:
- Q: What is the brand name of this product?
- A: The brand name of this product is Supreme.
- Q: What is the model number of this product?
- A: The model number of this product is SZ-330B
- Q: Where is this product manufactured?
- A: This product is manufactured in Wenzhou.
- Q: Is this product certified?
- A: Yes, this product is certified with CE.
- Q: What is the minimum order quantity for this product?
- A: The minimum order quantity for this product is 1.
- Q: Can the price of this product be negotiated?
- A: Yes, the price of this product is negotiable.
- Q: How will this product be packaged for delivery?
- A: This product will be packaged in a fumigation wooden box.
- Q: How long will it take to deliver this product?
- A: It will take 60 working days for this product to be delivered.
- Q: What are the payment terms for this product?
- A: The payment terms for this product is TT.
- Q: How many sets of this product can be supplied per month?
- A: 30 sets of this product can be supplied per month.
