This machine has many applications in the manufacturing industry, including electronic production lines and adhesive product lines.

Customization:

Brand Name: Supreme

Model Number: MQ-320Z(S)

Place of Origin: Wenzhou

Certification: CE

Minimum Order Quantity: 1

Price: Negotiation

Packaging Details: Fumigation wooden box

Delivery Time: 30-60 working days

Payment Terms: TT

Supply Ability: 20sets/month

Max. Cutting Width: 300 Mm

Power Consumption: 13kw

Material: Paper

Application: Label Adhesive Paper

Dimensions: 3700 (length) * 1250 (width) * 1700 (height)

Key Features: Foil Stamping Die Cutting Machine, Flatbed Die Cutting Machine, High-grade Flatbed labels full automatic die cutting machine

Packing and Shipping:

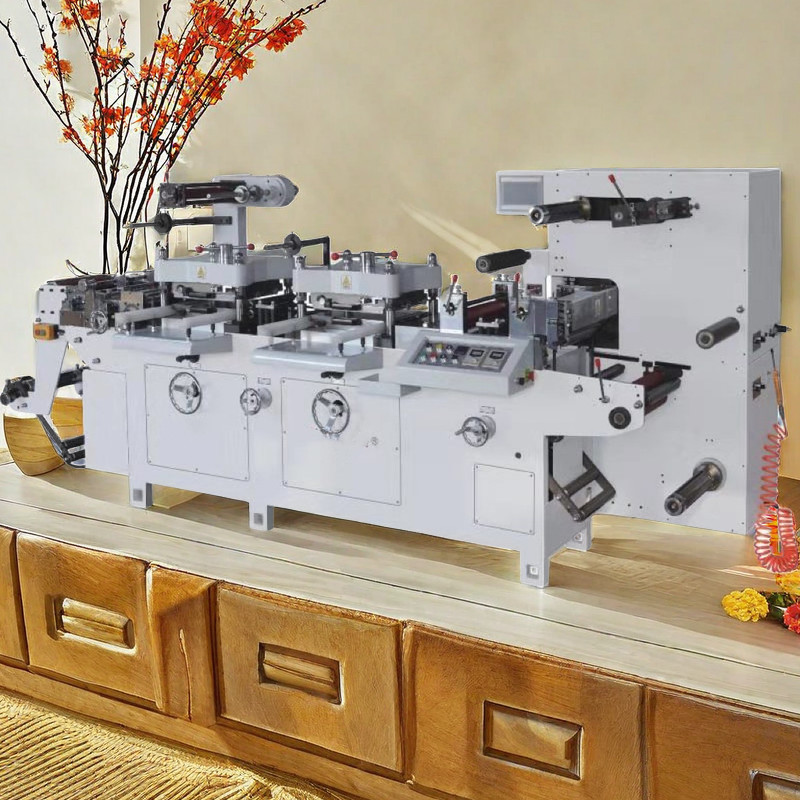

• The 300 TIMES/MIN DOUBLE HEAD TWO STATION LABEL HOT FOIL STAMPING FLAT BED DIE CUTTING MACHINERY EMBOSSING GOLDEN SIVER will be carefully packaged to ensure safe delivery.
• The machine will be wrapped in protective materials to prevent any damage during transportation.
• The packaged machine will be labeled with the necessary shipping information, such as product name, quantity, and destination address.
• The package will be securely sealed and loaded onto a freight truck for transportation.
• For international shipping, all necessary customs documents and declarations will be included with the package.

FAQ:

• Q: What is the brand name of this product?
• A: The brand name of this product is Supreme.
• Q: What is the model number of this product?
• A: The model number of this product is MQ-320Z(S).
• Q: Where is this product manufactured?
• A: This product is manufactured in Wenzhou, China.
• Q: Is this product certified?
• A: Yes, this product is certified with the CE mark.
• Q: What is the minimum order quantity for this product?
• A: The minimum order quantity for this product is 1 set.
• Q: Can the price of this product be negotiated?
• A: Yes, the price of this product can be negotiated.
• Q: How is this product packaged?
• A: This product is packaged in a fumigation wooden box to ensure safe transportation.
• Q: How long is the delivery time for this product?
• A: The delivery time for this product is 30-60 working days.
• Q: What are the accepted payment terms for this product?
• A: The accepted payment terms for this product are TT (Telegraphic Transfer).
• Q: What is the supply ability for this product?
• A: The supply ability for this product is 20 sets per month.

1. Performance characteristics
A. Die cutting speed 300/min
B. Die cutting accuracy+/-0.1
C. Die cutting area 300 (length) * 300 (width)
D. Maximum width of paper 320mm
E. Maximum diameter of unwinding 600mm
F. Maximum diameter of winding 600mm
G.Weight 3500kg
H.Voltage 380V
I. Total power 13KW
J.Packaging size: 3700 (length) * 1250 (width) * 1700 (height)

2.Unwinding section
A.Unwinding air shaft
B.Friction type tension controlled
C.Unwinding traction pulling roller
D.Unwinding dacing roller
E. Automatic deviation correction
F. Color tracking

3. Die cutting part
A. 5.5KW main motor
B. Automatic circulating lubrication system
C. Main bearing (Harbin)
D. Spring
E. Body Casting Assembly
F. Die cutting station assembly

4. Material pulling part
A. Pulling servo motor (Inovance, China)
B. Pulling rubber roller (rubber)
C. Bearing (Harbin)
D. Synchronous belt (Ningbo Fulong)

5. Waste collection
A. Waste shaft
B. Magnetic clutch

6. Rewinding section
A. Rewinding dacing roller
B. Rewinding traction rubber roller
C. Rewinding traction motor
D. Rewinding air shaft
E. Magnetic clutch

7. sheet cutting section
A. Steel cutting knife
B. Electromagnetic brake clutch

8. Electric control part
A. Controller PLC (China Inovance)
B. Servo motor driver (Inovance, China)
C. Touch screen (MCGS)
D. Host Inverter (Schneider, France)
E. Color tracking (German Leuze)
F. Proximity switch (Dongtou Baideli)
G. Knife control board (Supreme)
I. Switching power supply (Taiwan Mingwei)
J. Relay (China Chint)
K. Button (Schneider, France)
L. AC contactor (China Chint)

9.Sheet metal, cover,paint ect

10. Others
A. Toolbox
B. Instructions
